Silver Printing Circuit

Overview:

Silver flexible circuits are ideal for low-power and low signal applications where space is a premium. By choosing silver, the customers can design a product that bends and flexes.



Furthermore Ideal Jacobs possess the technology of Find Line Printing, with the trace as narrow as 0.127mm. This capability provide an alternative to traditional copper circuitry, which makes silver flexible circuit more cost effective and desirable.


 Features:

◇ Light weight

◇ Flexible

◇ Thin


Basic Parameter:

◇ Operating voltage: ≤50VDC

◇ Operating current: ≤100mA

◇ Insulation resistance: ≥50MΩ

◇ Substrate withstand voltage: 2k DVC

◇ Bending test: Silver ink/R(2mm)20times

◇ ESD test : IEC61000-4-2;Level 4 Air

◇ gap+/-15KV&Contact +/-8KV

◇ Operating temperature: -40℃~85℃

◇ Normal thickness: 0.125mm

◇ Minimum Pitch: 0.5mm

◇ Integrated circuits: QFN, QFP, D-PAK(0.50MM (Pitch)


Application Area:

     Smart  Home Appliances

     Medical Devices

     Automotive Devices

     Data Logging/Smart Tags



Rubber keypads
    Publish time 2019-12-03 09:25

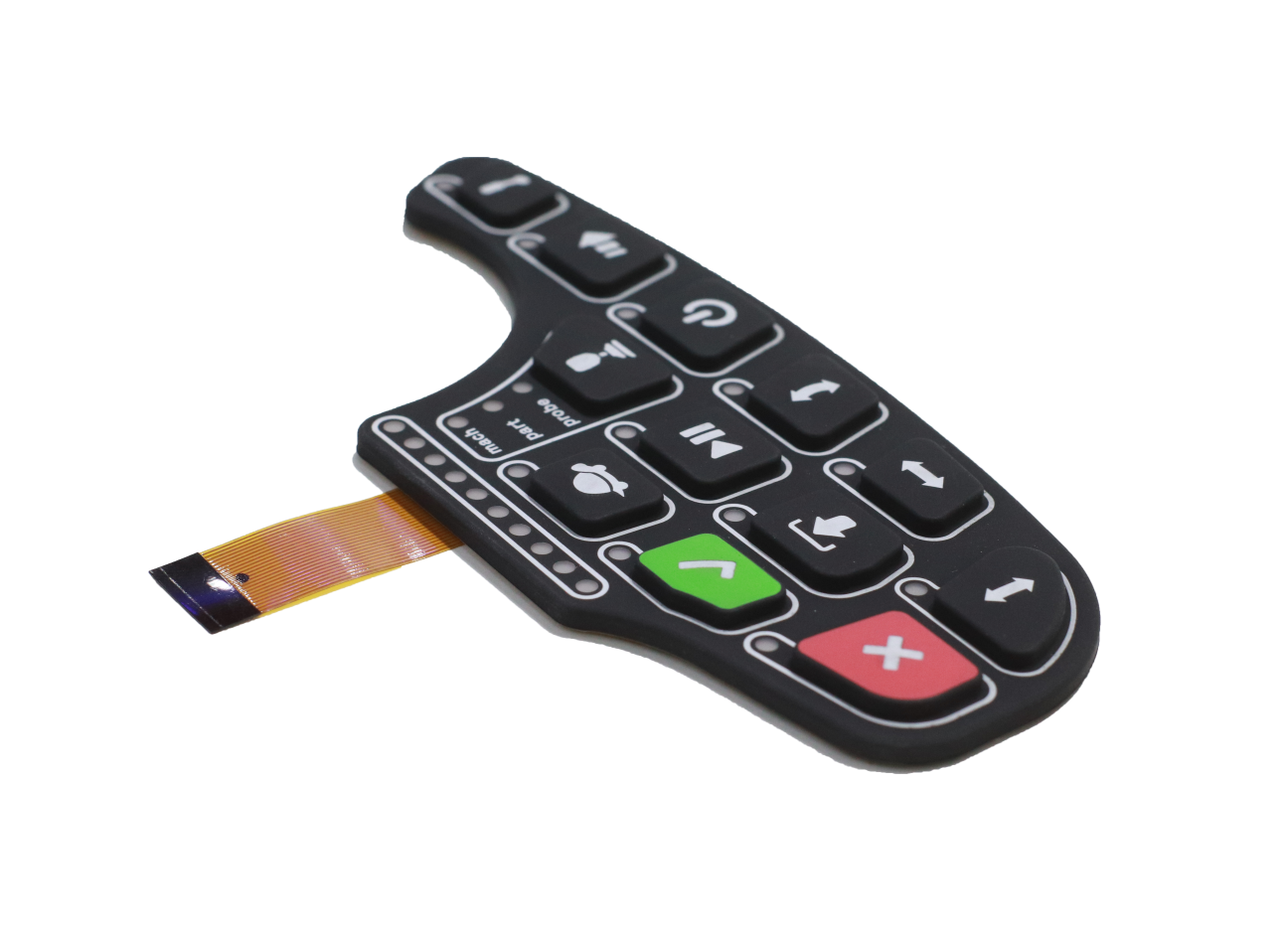

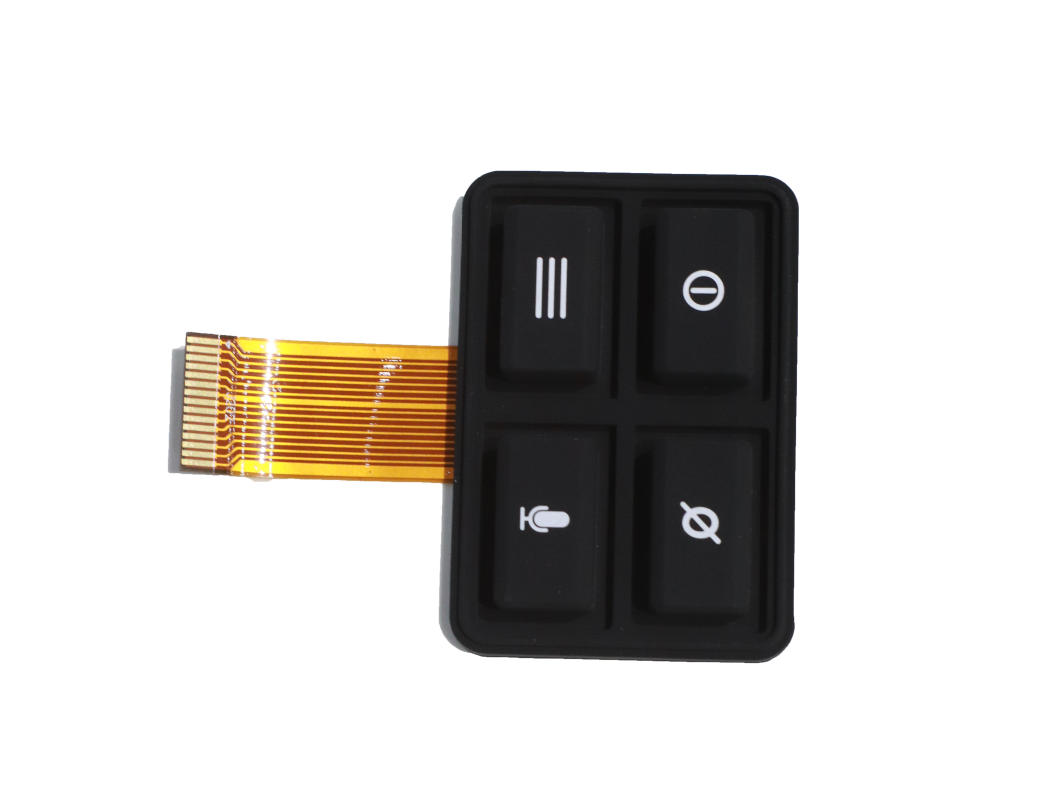

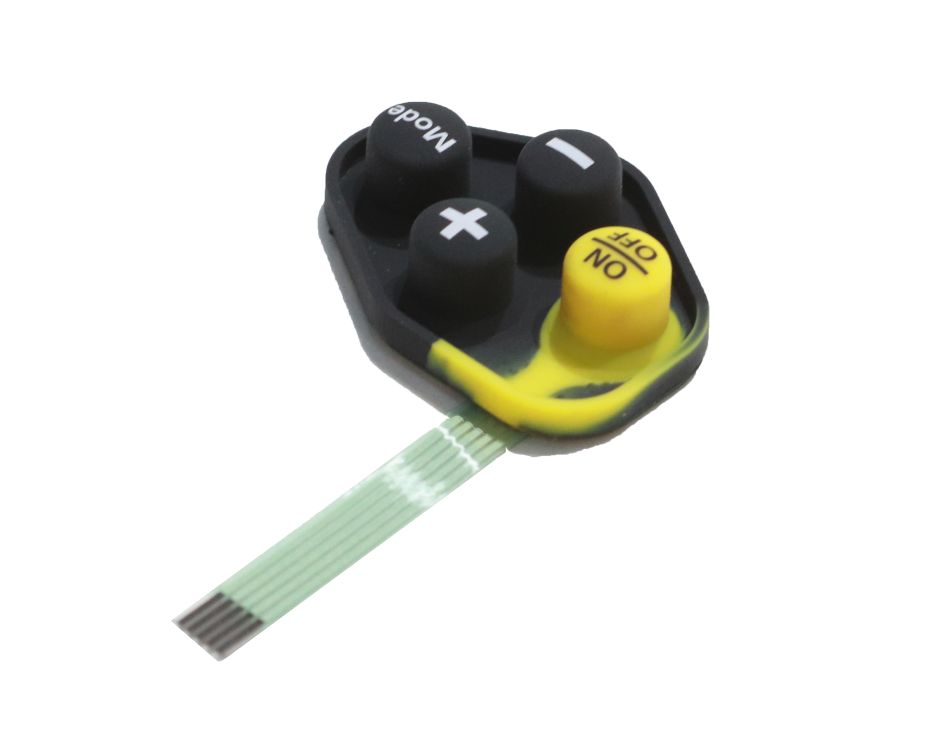

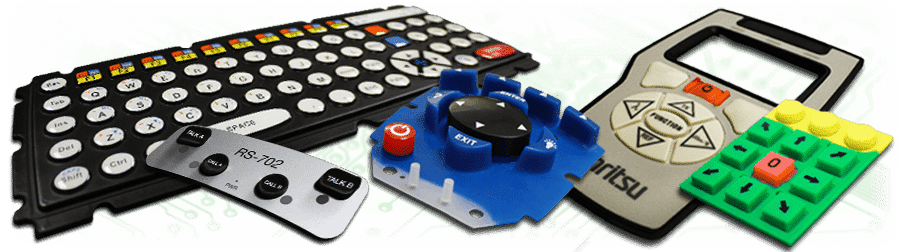

Rubber keypads

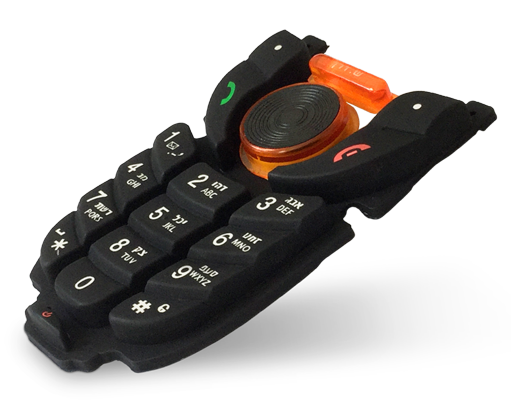

Rubber keypads are manufactured from silicone rubber properties that are typically processed from either injection or compression molding. They have exceptional resistance to extreme temperatures and environmental factors, making them an ideal choice for products exposed to harsh environmental conditions, moisture, chemicals, etc


Ideal Jacobs offer a wide range of design possibilities due to the many sizes, shapes, and colors that it can be molded into. Our rubber switches be easily integrated into both flex circuitry and PCB-based membrane switch assemblies allowing for both reduction in cost and assembly time.



Custom Rubber Keypad Solutions & Features:

Multiple shapes, sizes, and color options

Tactility and actuator options

Flexible circuit based (copper flex Kapton or silver) or PCB based loaded with components

Printing and graphics utilizing screen-printing, Rubber keypad backlighting

Proprietary over coatings and finishes

Embossed or debossed molding

Conductive carbon pills

Latest dome technology for tactility

Graphic overlay adhesion and integration

Environmental sealing

Laser etching

Chemically resistant coating

Many different durometer options

EMI / ESD / RFI Shielding

Rubber, plastic, stainless steel keycaps

Epoxy coated keys

Custom molded enclosures

◇ Cost effective

◇ Environmentally friendly
