Silver Printing Circuit

Overview:

Silver flexible circuits are ideal for low-power and low signal applications where space is a premium. By choosing silver, the customers can design a product that bends and flexes.



Furthermore Ideal Jacobs possess the technology of Find Line Printing, with the trace as narrow as 0.127mm. This capability provide an alternative to traditional copper circuitry, which makes silver flexible circuit more cost effective and desirable.


 Features:

◇ Light weight

◇ Flexible

◇ Thin


Basic Parameter:

◇ Operating voltage: ≤50VDC

◇ Operating current: ≤100mA

◇ Insulation resistance: ≥50MΩ

◇ Substrate withstand voltage: 2k DVC

◇ Bending test: Silver ink/R(2mm)20times

◇ ESD test : IEC61000-4-2;Level 4 Air

◇ gap+/-15KV&Contact +/-8KV

◇ Operating temperature: -40℃~85℃

◇ Normal thickness: 0.125mm

◇ Minimum Pitch: 0.5mm

◇ Integrated circuits: QFN, QFP, D-PAK(0.50MM (Pitch)


Application Area:

     Smart  Home Appliances

     Medical Devices

     Automotive Devices

     Data Logging/Smart Tags



HMI Control Panel Assembly
    Publish time 2019-12-03 10:33
HMI Control Panel Assembly

HMI Control Panel Assembly

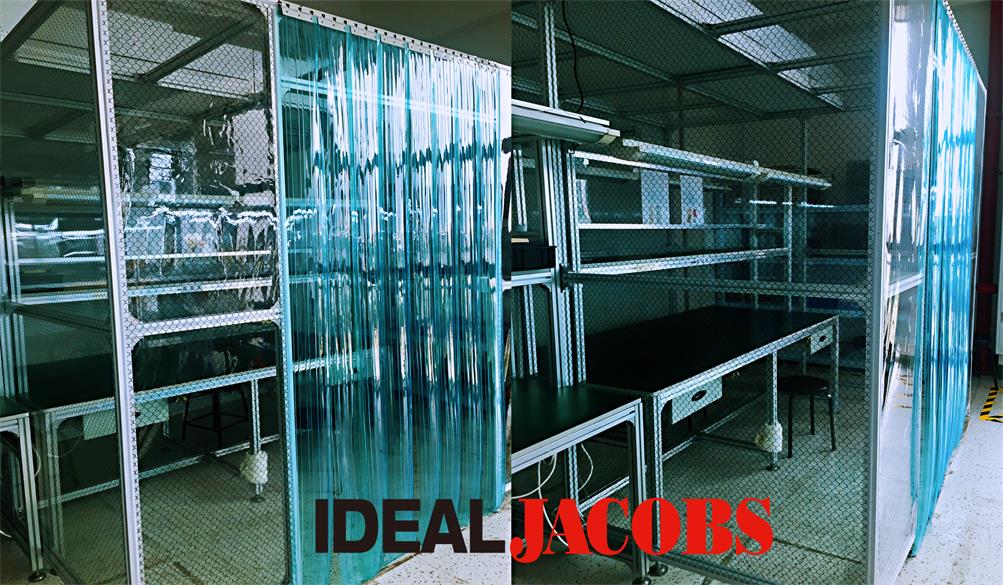

At Ideal Jacobs, we are committed to offer cutting-edge HMI product for the telecom, industrial, medical, and transport industry. We are now pleased to unveil the ability of HMI Control Panel Assembly with our 1000 level clean booth .

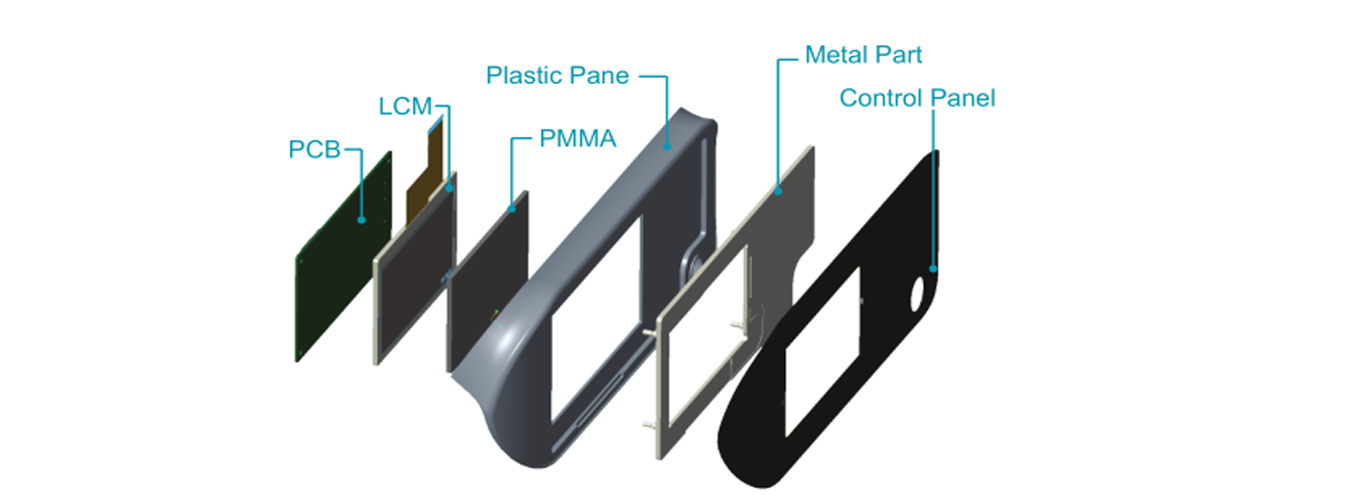

Our HMI assemblies are adaptable, and can easily be customized to suit the needs of your industry. Our experienced team will work closely with you to design 、manufacture or source the relevant components, which including:

• Front Control Panel
• (Membrane Switch/Capacitive Keypad )
• Plastic Panel
• Metal Panel
• PMMA Window Area with Hard Optical Board
• LCM Mould
• PCB Componet

◇ Cost effective

◇ Environmentally friendly
