Overview:

Silver flexible circuits are ideal for low-power and low signal applications where space is a premium. By choosing silver, the customers can design a product that bends and flexes.



Furthermore Ideal Jacobs possess the technology of Find Line Printing, with the trace as narrow as 0.127mm. This capability provide an alternative to traditional copper circuitry, which makes silver flexible circuit more cost effective and desirable.


 Features:

◇ Light weight

◇ Flexible

◇ Thin


Basic Parameter:

◇ Operating voltage: ≤50VDC

◇ Operating current: ≤100mA

◇ Insulation resistance: ≥50MΩ

◇ Substrate withstand voltage: 2k DVC

◇ Bending test: Silver ink/R(2mm)20times

◇ ESD test : IEC61000-4-2;Level 4 Air

◇ gap+/-15KV&Contact +/-8KV

◇ Operating temperature: -40℃~85℃

◇ Normal thickness: 0.125mm

◇ Minimum Pitch: 0.5mm

◇ Integrated circuits: QFN, QFP, D-PAK(0.50MM (Pitch)


Application Area:

     Smart  Home Appliances

     Medical Devices

     Automotive Devices

     Data Logging/Smart Tags



Matrix SmartOverlay
    Publish time 2019-12-03 10:51
Matrix SmartOverlay

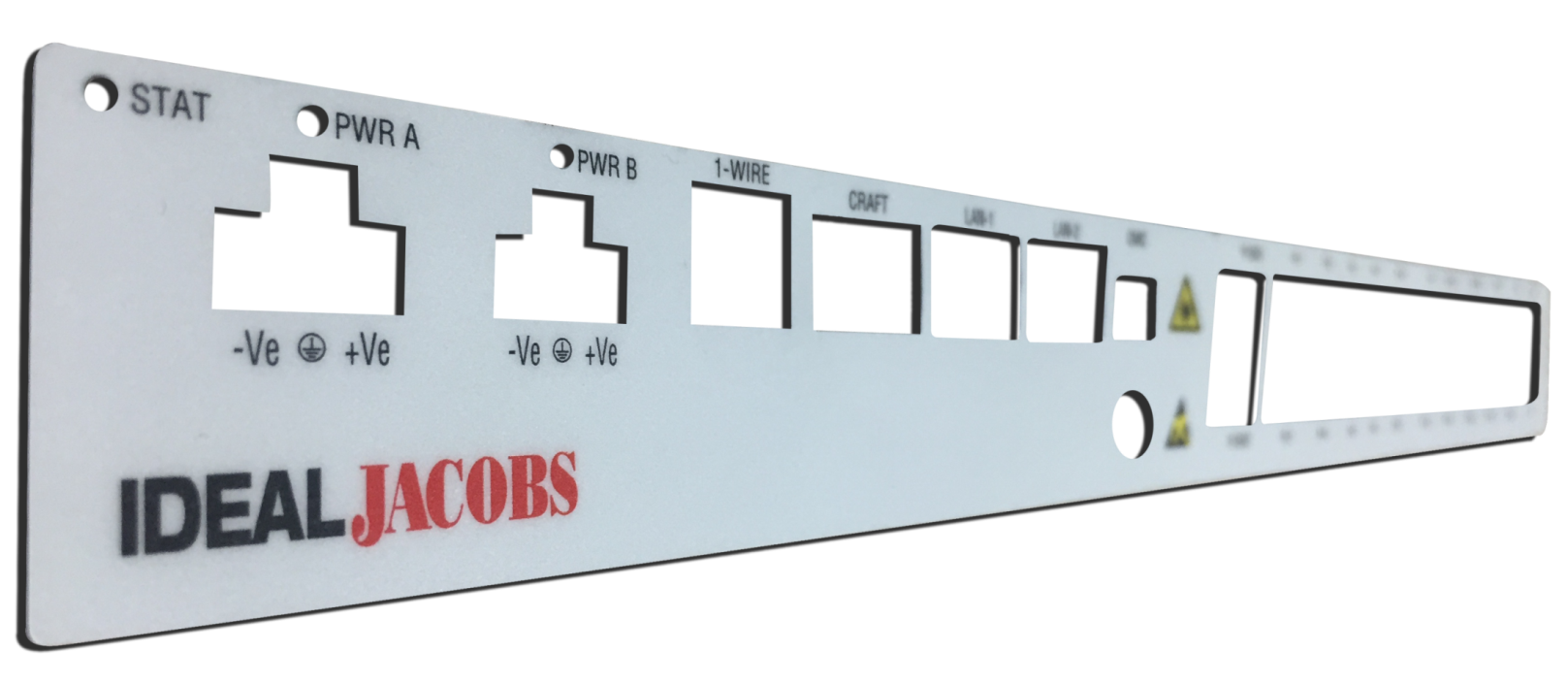

Matrix@SmartOverlay ®
“On the control panel, if a large number (0-100 or above) of LEDs are required for instruction, the LEDs and the circuit will occupy too much space of the PCB. How to solve this problem ？”

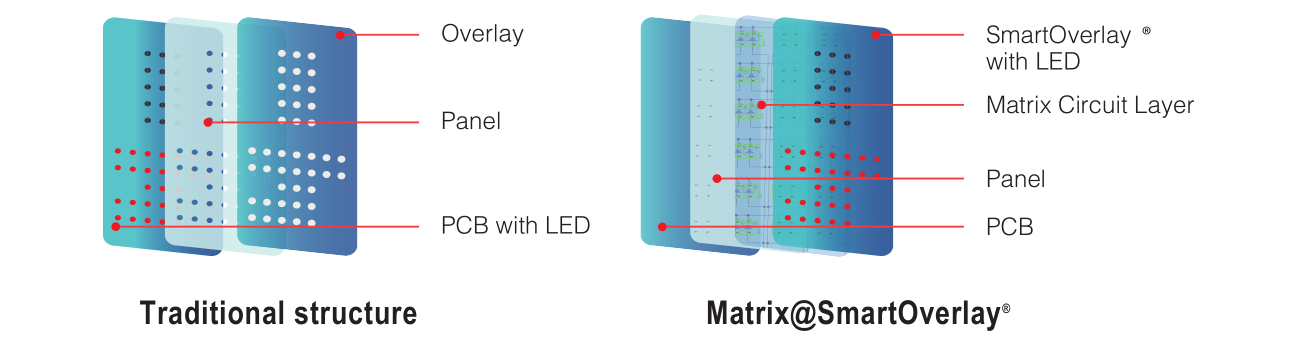

The IJ SmartOverlay Matrix solutions will help solve this problem. By utilizing the matrix circuit design, a large number of LEDs can be trans- ferred from the PCB to the SmartOverlay, reducing the amount of space needed.

Engineering Feature:                                                                                              Application Area:
◇ More space released on the PCBA by transferring the LEDs to the SmartOverlay ®                                                  ◇ Medical Devices
◇ Decreases the sources of electrical heat on the PCBA                                                                                                ◇ IT/telecomunications
◇ Metric circuit design minimizes the circuit layout                                                                                                          ◇ Optical Networking
◇ Improves assembly efficiency, removes the light guide module





◇ Cost effective

◇ Environmentally friendly
